LSC Modular Contactor

50-225 Amps Circuits

12x12x04 NEMA01

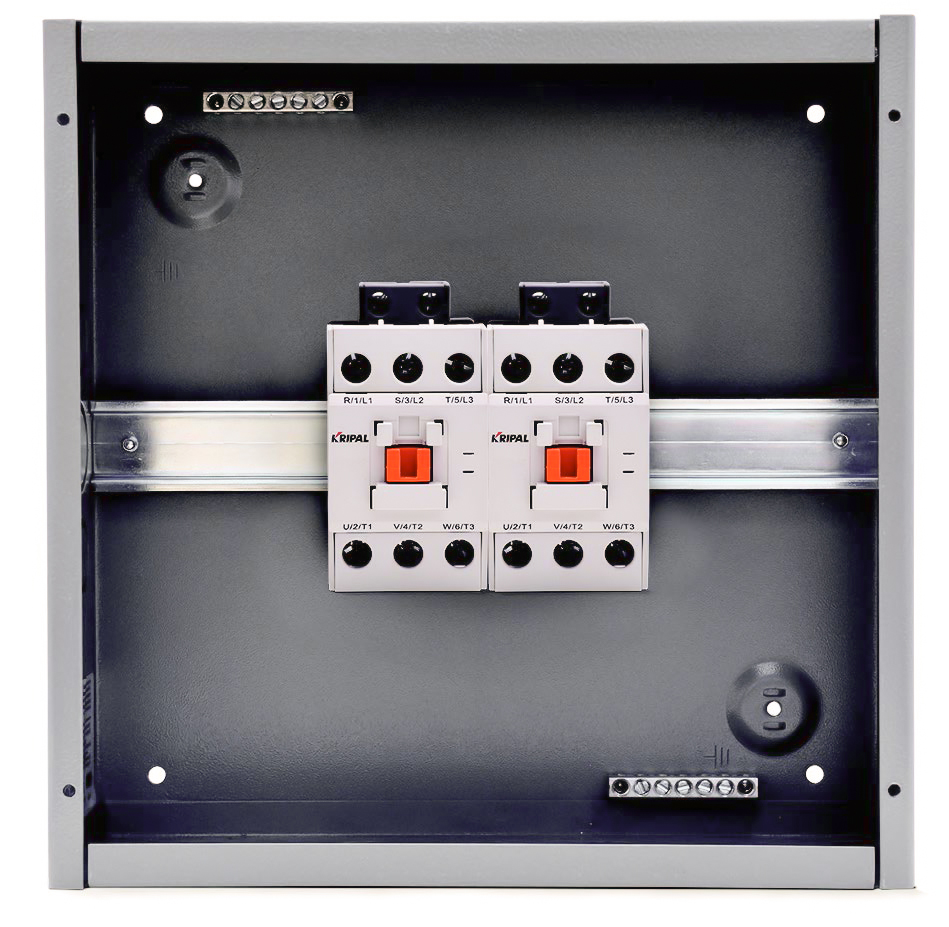

8X8X4 NEMA01

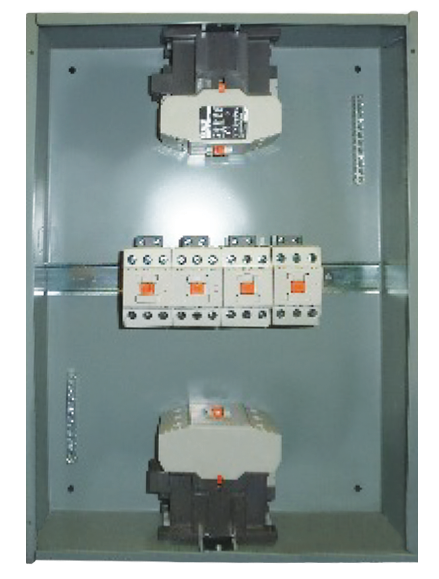

20X14X4 NEMA01

Allows 200 Amp Service Rated Switch on Smaller Generators to Meet National Electric Code

  • UL listed & IEC-60947
  • 50, 65, 100, 125, 180 and 225 amp contactor modules
  • Any combination of 1- 8 contactor modules
  • Surface and flush mount enclosures
  • Heavy duty industrial grade contactors

Modular Load Shedding Contactor Assembly Features

  • Universal load shedding contactors work with all Generac transfer switches with load controllers
    (even new low voltage board)
  • Provides load shedding capabilities for double pole circuits with 15-225 Amps breakers/loads
  • Reduces installation time and space requirements and assists in meeting the new NEC codes
  • Din-rail mounting allows for fast and easy customization for any configuration required
  • Available in a variety of enclosure configurations including NEMA 1 and NEMA 3R
  • Compact flush mount version fits inside of studs and the optional flush cover extends 3/4” past edge of
    can on all 4 sides for finished walls
