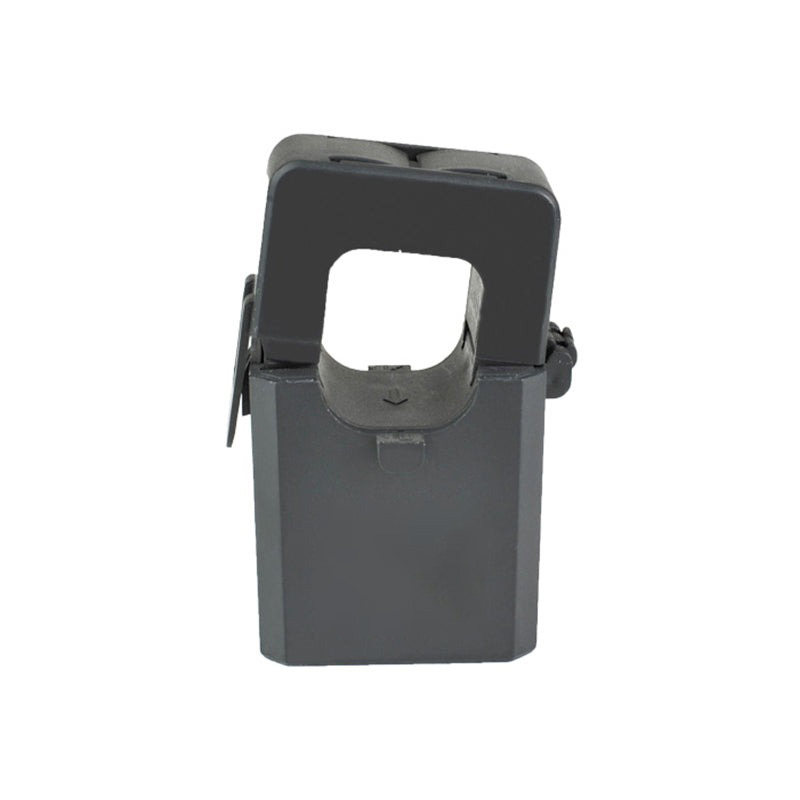

CT93-Split250 CT
5VDC Output Split Core Current Transformer
Split core current transformers are a great option when needing to monitor demand being used on utility service or generator service. This 250A option can be used with our LSC series programmable controller and our line of EV charger load management SAK-MS devices.
- Hanging installation, crimping terminal output
- Core material: Silicon steel sheet
- Rated input: 250A
- Output voltage: 1, 3, or 5VDC
- Operating temperature: -25℃ to +60℃
- Storage temperature:- 30℃ to +90℃
- Frequency range: 50Hz–1KHz
- Dielectric strength: 3.5KV 50Hz 1min
- Accuracy: ±2%
