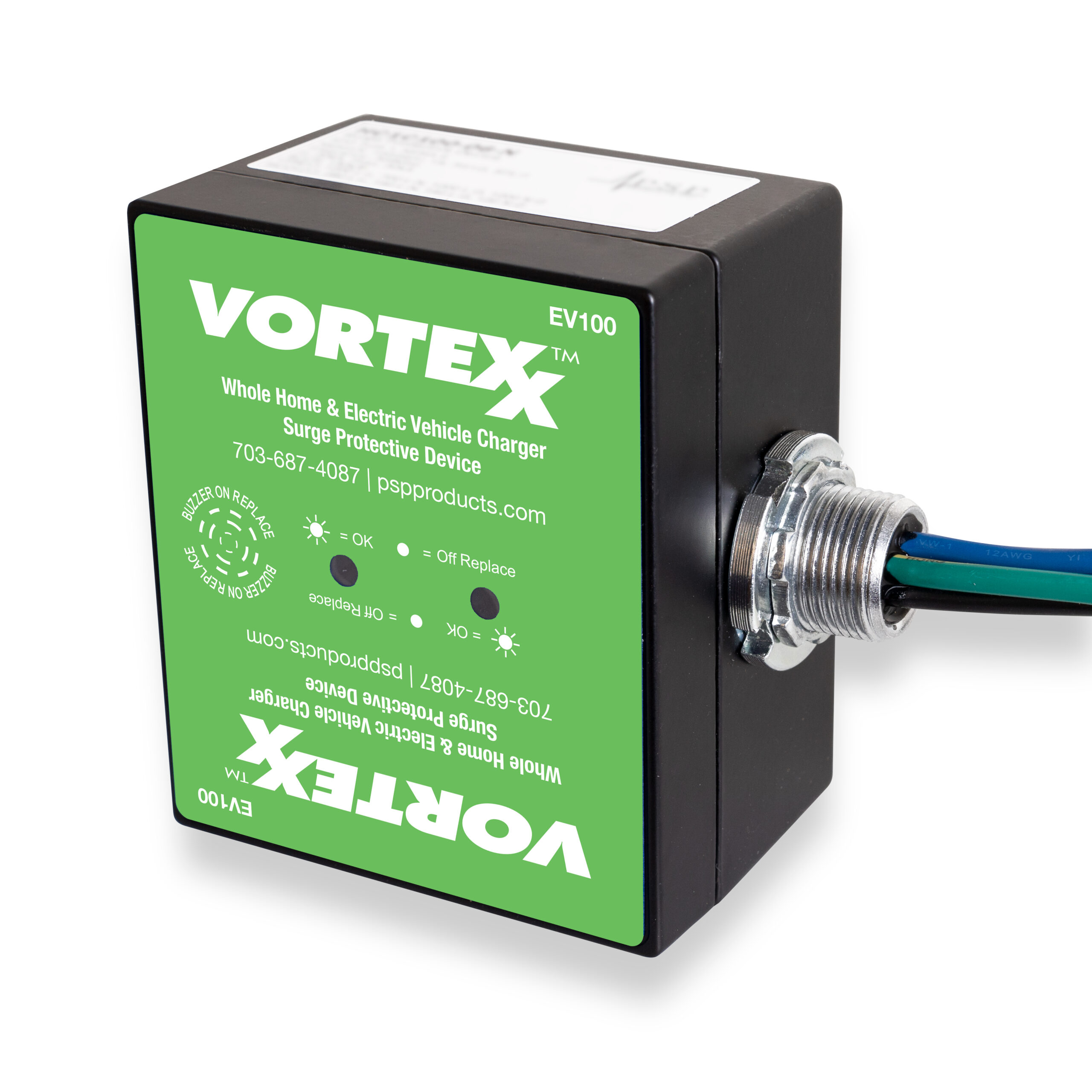

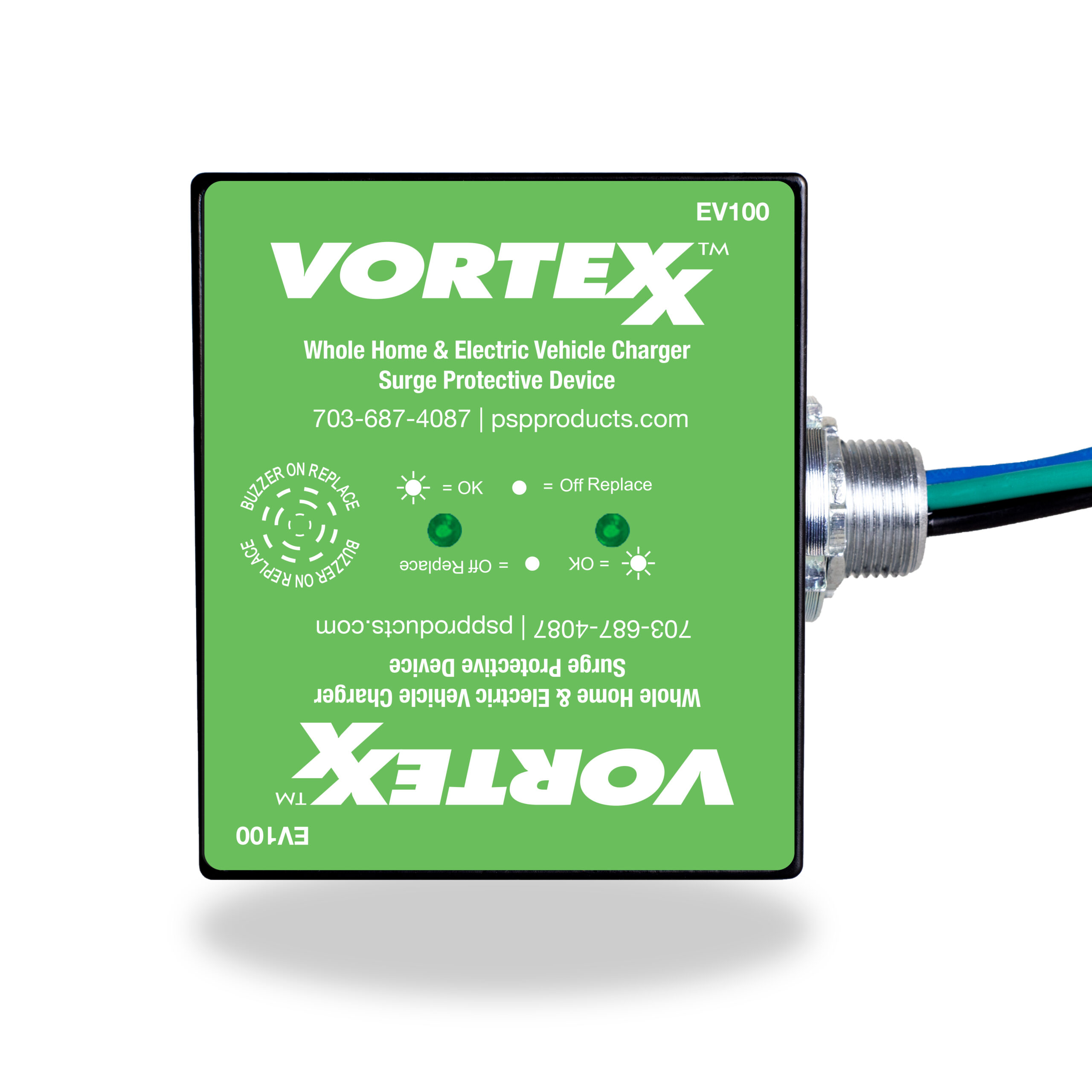

EV100

Electric Vehicle Charger and Panel Surge Protector

Main panel, subpanel and point of use applications up to 200 KAIC fault current rating. Status LEDs with audible alarm. 100kA available in 1-phase. NEMA 06 enclosure.

  • Imax: 100 kA per phase
  • In: 20 kA
  • Thermally fused metal oxide varistor (TFMOV) suppression with added gas discharge tube (GDT) technology
  • LED indicator and audible alarm
  • EMI/RFI noise filtration (-40db)
  • NEMA 6 (IP66) indoor/outdoor rated enclosure
  • Meets UL 96A lightning protection master label
  • Lifetime warranty

Add-On Items

  • Mounting bracket to allow installation inside of electrical panel – Item# H2-LB
  • Flush mount cover – Item# H2-FMC
