Whole Home Surge Protection

PSP Products, Inc. manufactures a complete line of defense for home surge protection. Our surge protectors help protect your home against power surges. From our Type 1 service entrance rated surge protection to our low voltage networking and communication surge protection, PSP Products has you covered.

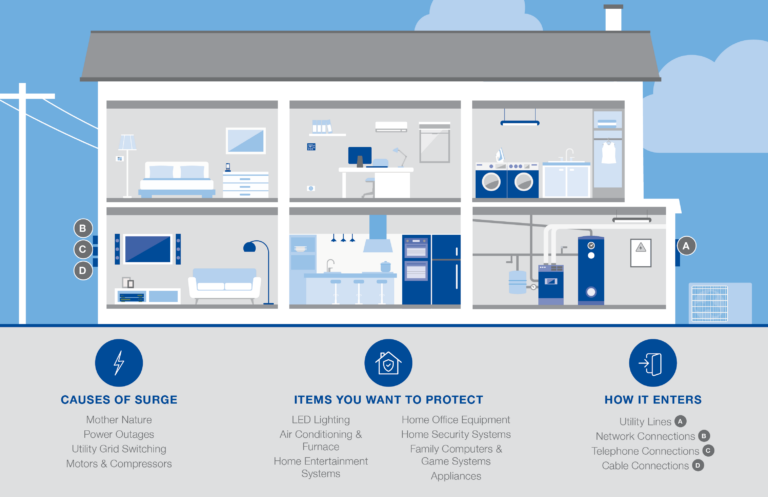

Why whole home surge protection?

In today’s Digital/LED world, everything in the home has complex circuitry and LED lights. These items are far more sensitive to everyday transients from the utility company. While extreme weather can cause serious power outage issues, other more common factors cause voltage surges or transients. These transients cause electronic rust to eat away and cause premature failure. You are much more likely to have a failure due to transients than from a lightning strike or other catastrophic event. Our quality, high-end, hybrid design surge protection can stop transients and increase the life of household electronic devices and appliances.

GDT/TPMOV Hybrid Surge Protection Devices

All of our residential surge protectors feature Gas Discharge Tube (GDT)/Thermally Protected Metal Oxide Varistor (TPMOV) technology. GDT/TPMOV hybrid Surge Protection Devices (SPDs) have many advantages over TPMOV only designs. In addition to increased safety, demonstrated highest possible SCCR Ratings and Nominal Discharge Ratings, they carry longer warranty periods and offer better protection to connected equipment. The GDT also eliminates MOV leakage, extending the life of the MOV, eliminating their typical degradation over time. How do they work? The GDT supports the TPMOV allowing the SPD to successfully divert larger spikes power surges more effectively than a TPMOV alone. The TPMOV reacts first, diverting the initial spike safely to Ground. The GDT diverts all energy beyond what the TPMOV max is.

Our Type 1 surge protection devices are UL 1449 5th edition listed and meet the NEC 2020 230.67 requirements. So far over 50% of the country has adopted the NEC 2020 guidelines stating surge protection MUST be installed on new services, and upgrades. Adoption is underway for at least another 10 states in the next 12 months alone. Be prepared for new guidelines that are being enacted across the country.

Residential Type 1 Whole Home Surge Protection Comparison Chart

	VB1-60-4XP Panel Protection	VB1-100-4XP Panel Protection	VR1-120-4XM Service Entrance Rated

Imax	60 kA per Phase	100 kA per Phase	120 kA per Phase
Protection Modes	L-G, L-L	L-N, L-G, L-L, N-G	L-N, L-G, L-L, N-G
Thermally Fused Metal Oxide Varistor (TFMOV)	Yes	Yes	Yes
Gas Discharge Tube (GDT)	Yes	Yes	Yes
Dedicated RFI/EMI Filter	No	No	Yes
Failure Indicator	LED Indicators & Audible Alarm	LED Indicators & Audible Alarm	LED Indicators & Audible Alarm
Nominal Discharge Current Per Mode (In)	10 kA	20 kA	20 kA
Short Circuit Current Rating (SCCR)	200 kA	200 kA	200 kA
Mounting Type	Nipple/Wall Mounting Optional Flush Mount	Nipple/Wall Mounting Optional Flush Mount	Nipple/Wall Mounting Optional Bracket Mount Optional Flush Mount
Environmental Rating	NEMA 4X Indoor/Outdoor	NEMA 4X Indoor/Outdoor	NEMA 4X, IP65, IP66 Indoor/Outdoor
Warranty	Lifetime/$25,000	Lifetime/$50,000	Lifetime/$100,000
