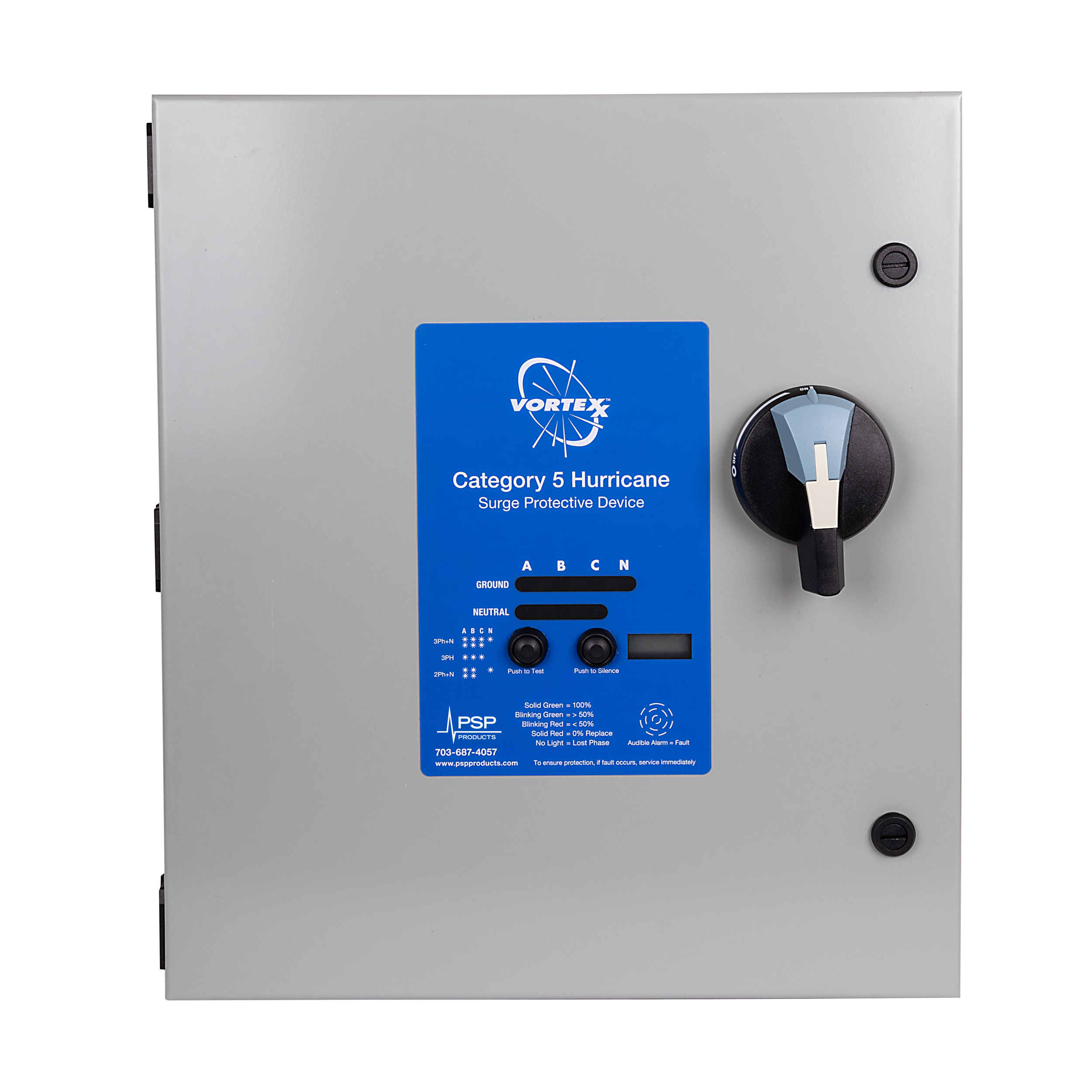

Category 5 Hurricane
Service and Panel Surge Protector
The Category 5 Hurricane is the culmination of years of technological research and innovation. This series provides state of the art protection from 200kA to 750kA per phase. Available in all single and three phase voltage configurations. All models available in 7 mode and 10 mode configuration with pop out replaceable modules by mode eliminating unnecessary down time and costly repair or replacement.
- Imax: 200–750kA per phase
- In: 20kA
- Thermally fused metal oxide varistor (TFMOV) suppression with added gas discharge tube (GDT) technology
- Real-time LED indicators, audible alarm with silence remote contacts, push to test & surge counter with reset
- Sine wave tracking
- EMI/RFI noise filtration (-40db)

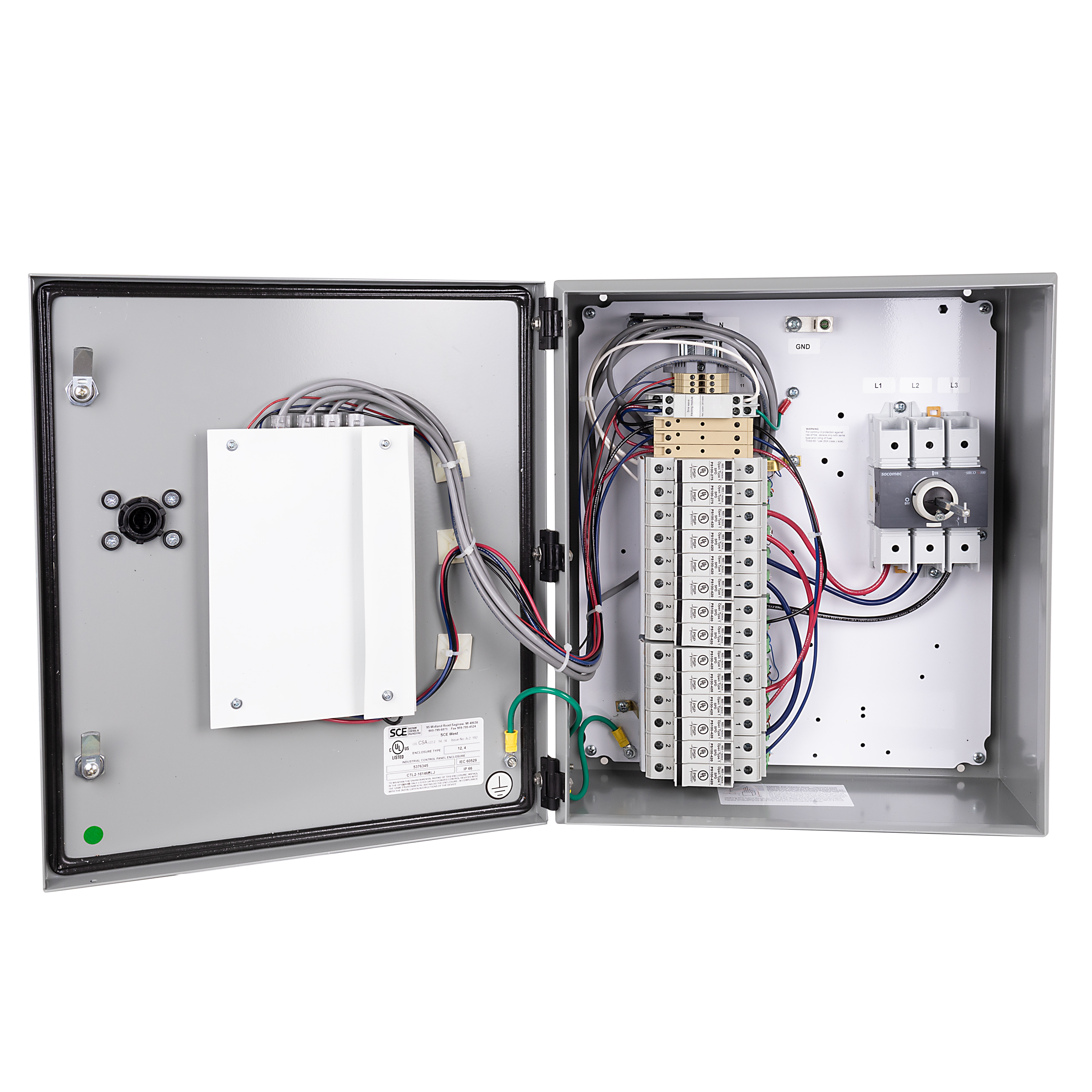

- Field replaceable modules
- Available in 7 and 10 mode configurations
- NEMA 4 (IP66) indoor/outdoor rated steel enclosure
- 10 year warranty
Add-On Options
- NEMA 4X polycarbonate enclosure
- Integral disconnect
- NEMA 4X stainless steel
- 15 & 25 year warranty upgrade available on all versions
