Double pole SPD
Single pole SPD

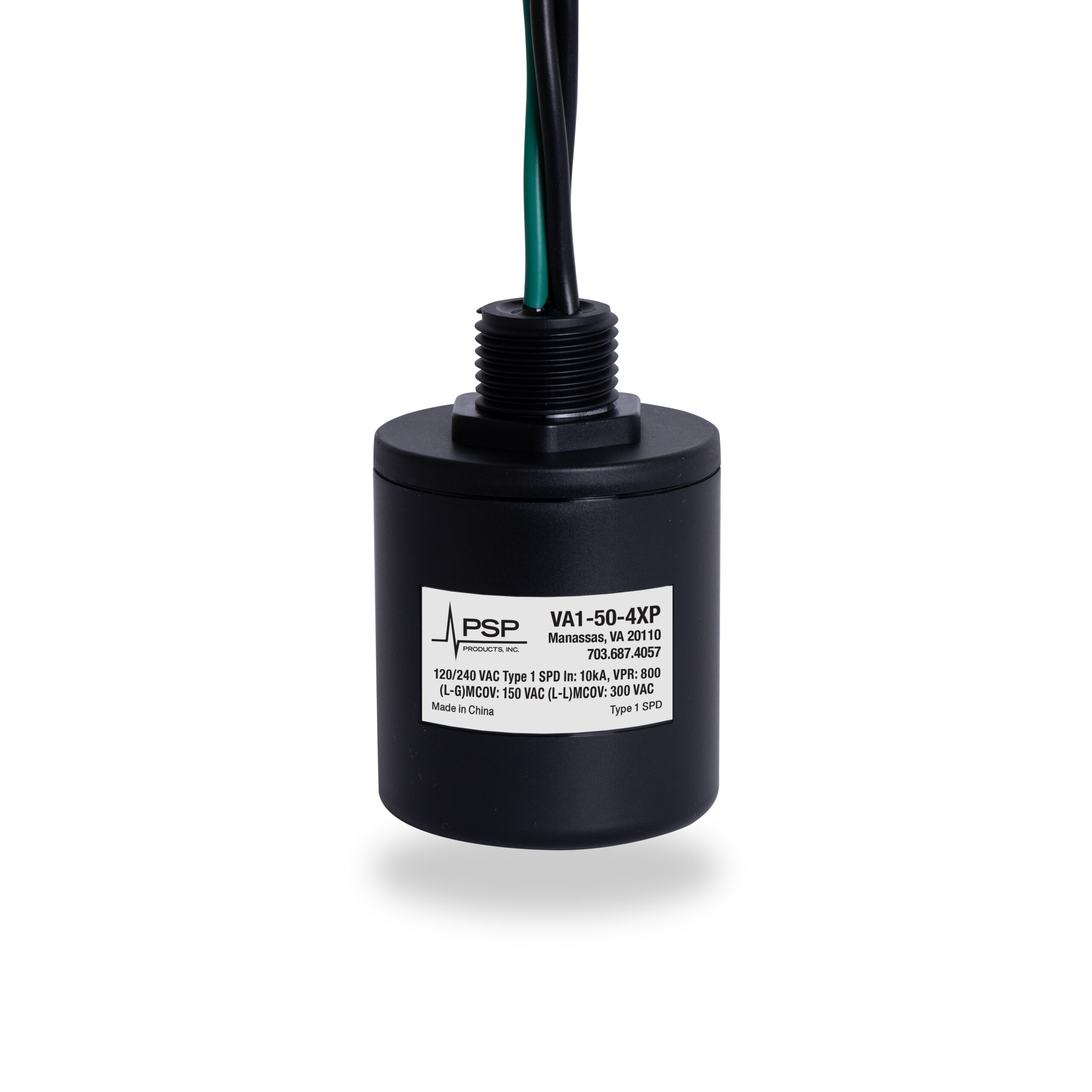

Vortexx™ Series A

Lighting and Motor Surge Protector

The Vortexx Series A devices are designed and built to combine excellent performance, a space saving and flexible design and serious cost efficiency. Available in either single phase/single pole (L-N-G) configurations of 120 VAC, 240–277 VAC and 480 VAC, or a double pole version configuration of 120/240 VAC (L-G) which is UL 1449 5th edition listed. These units are an excellent choice for UL508 panels. They can be built into any UL certified device.

  • Imax: 50kA
  • In: 10kA
  • Small footprint
  • Thermally fused metal oxide varistor (TFMOV) suppression with added gas discharge tube (GDT) technology
  • LED diagnostic indicator
  • Nipple mount or bracket mount installation
  • Single pole is a UL recognized component
  • Double pole is a UL 1449 5th edition listed component
  • NEMA 4X indoor/outdoor enclosure
  • 25 year warranty
